Specification
|
Value
|
|
Protection Circuit
|
4-Way Protection (Thermal, Over/Under Voltage, Speaker DC)
|
|

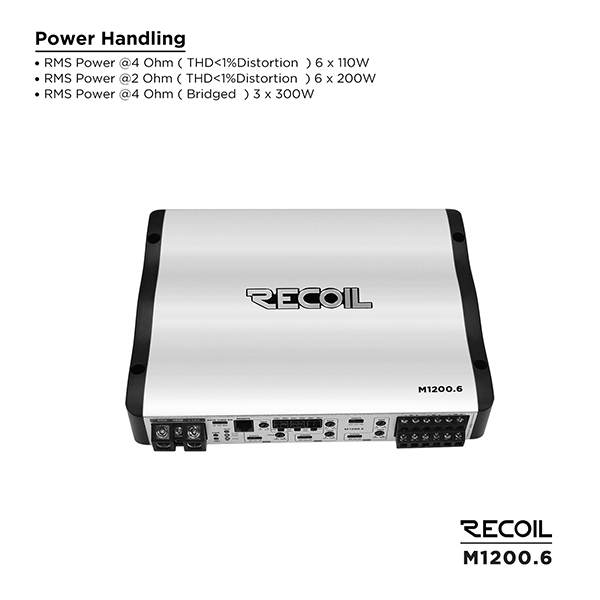

RMS Power @ 1Ω (14.4V)
|
N/A
|
|
RMS Power @ 2Ω (14.4V)
|
210W × 6 Channels
|
|
RMS Power @ 4Ω (14.4V)
|
110W × 6 Channels
|
|
Bridged RMS Power @ 4Ω (14.4V)
|
240W × 3 Channels
|
|
Bridged RMS Power @ 2Ω (14.4V)
|
N/A
|
|
Operating Voltage
|
9V – 16V DC
|
|
Idle Current (Power On)
|
1.5A (1500mA)
|
|
Frequency Response
|
20Hz – 40kHz
|
|
Signal-to-Noise Ratio (S/N)
|
89dB
|
|
THD+N (@ 1W)
|
<0.21%
|
|
Low-Level Input Sensitivity
|
N/A
|
|
High-Level Input Sensitivity
|
N/A
|
|
Bass Boost
|
N/A
|
|
Subsonic Filter
|
N/A
|
|
High-Pass Filter (HPF)
|
30Hz – 300Hz
|
|
Low-Pass Filter (LPF)
|
30Hz – 300Hz
|
|
Remote Bass Control
|
N/A
|
|
Clip Indicator
|
1% THD
|
|
Recommended Fuse Rating
|
100A
|
|

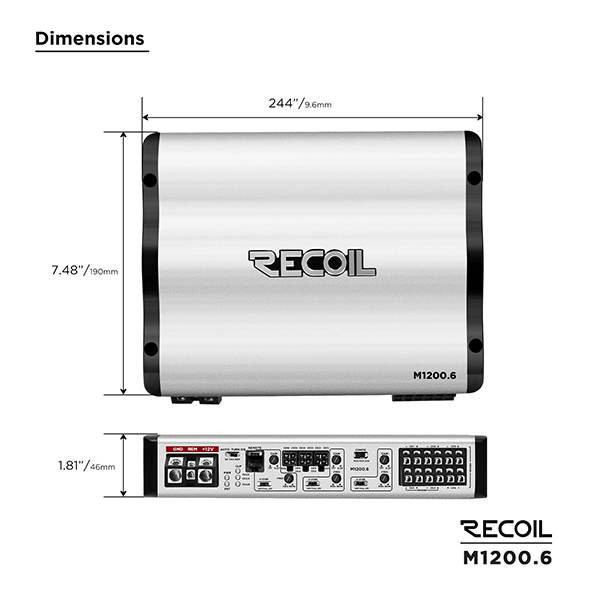

Dimensions (L × W × H)
|
8.81" × 7.48" × 1.81" (244 × 190 × 46mm)
|
