2018 - 2025 FORD WITH B&O PREMIUM SOUND PLUG & PLAY HARNESS KITS
Regular price
$160.00
THESE KITS ARE FOR THE 2018 - 2025 WITH FACTORY B & O PREMIUM SOUND .
THESE KITS BREAKS DOWN INTO 5 CATEGORIES
1 ADDING A SUB AMP WITH NEW SUB WOOFER
2 ADDING UPGRADED REAR SPEAKERS AND ADDING A 2 CHANNEL AMP TO POWER THEM ( F150 AND SUPER-DUTY )
3 ADDING A 4 CHANNEL AMP TO RUN REAR SPEAKERS AND NEW 8 INCH SUB IN FACTORY ENCLOSURE ( F150 AND SUPER DUTY )
4 ADDING MY COMPATIBLE MUSWAY 5 OR 6 CH AMP TO POWER MAIN DOOR SPEAKERS & SUB WHILE LEAVING B & O AMP CONNECTED TO RUN OTHER SPEAKERS
5 FULL SYSTEM UPGRADE
YOU MUST SEND A EMAIL AT JOE@PLUGNPLAYKITS.COM AFTER ORDERING STATING YEAR/MAKE/MODEL AND HOW MANY SPEAKER B & O SYSTEM YOU HAVE AS THEIR ARE MORE THAN 1 SYSTEM FOR EACH VEHICLE AND WIRING IS DIFFERENT FOR EACH . IF UNSURE PLEASE COUNT EACH SPEAKER IN YOUR VEHICLE ( TWEETERS , CENTER AND SUB COUNT AS A SPEAKER ) YOUR ORDER WILL NOT BE MADE WITHOUT THIS INFO
WE HAVE PLUG & PLAY HARNESS KITS TO ADD A BASS AMP TO THE FACTORY B & O SYSTEM WITHOUT CUTTING ANY WIRES . ALSO WE HAVE NEW HARNESS KITS THAT WILL ALLOW YOU TO AMP THE REAR SPEAKERS SEPARATELY WITH A 2 CHANNEL AMP FOR THE F150 AND SUPERDUTY SINCE THE REAR DOOR SPEAKERS ARE NOT RAN OFF THE B & O AMP AND ARE ONLY GETTING ABOUT 15-20 WATTS FROM AUDIO CONTROL MODULE . .I ALSO HAVE A KIT TO POWER THE REAR SPEAKERS AND A NEW SUB WOOFER WITH A 4 CHANNEL AMP . HARNESS PLUG INTO THE PLUG AT THE B & O AMP . ALSO A KIT TO UPGRADE THE ENTIRE SYSTEM
-
Bronco 2021-Up (USE BRONCO B&O LISTING )
-
Bronco Sport 2021-Up USE BRONCO B&O LISTING
-
E Series 2021-Up
-
EcoSport 2016-Up
-
Edge 2019-Up
-
Escape 2015-2019
-
Escape 2020-Up
-
Expedition 2018-Up
-
Explorer 2020-Up
-
F-150 2018-2025
-
F-250 2020 - 2024
-
Ranger 2019-Up
MACH E 2021-2024 10 SPEAKER
MAVERICK 2022 - 2025
KITS 1- 10 TO ADD A SUB AMP ONLY
KIT 1 PAC LPA 2.2 LINE OUTPUT CONVERTER WITH BUILT IN CLIP LIGHT AND LOAD RESISTORS $165
KIT 2 LC2IPRO WITH HARNESS WITH BUILT IN LOAD RESISTORS & BASS ROLLOFF CORRECTION & CLIP LIGHT & BASS KNOB $230
KIT 3 ACM 1.300 AMP WITH HARNESS $375
KIT 4 LC-1.800 AMP WITH HARNESS $530
KIT 5 LC-1.1500 AMP WITH HARNESS $800
KIT 6 KICKER CXA400.1T WITH HARNESS $318

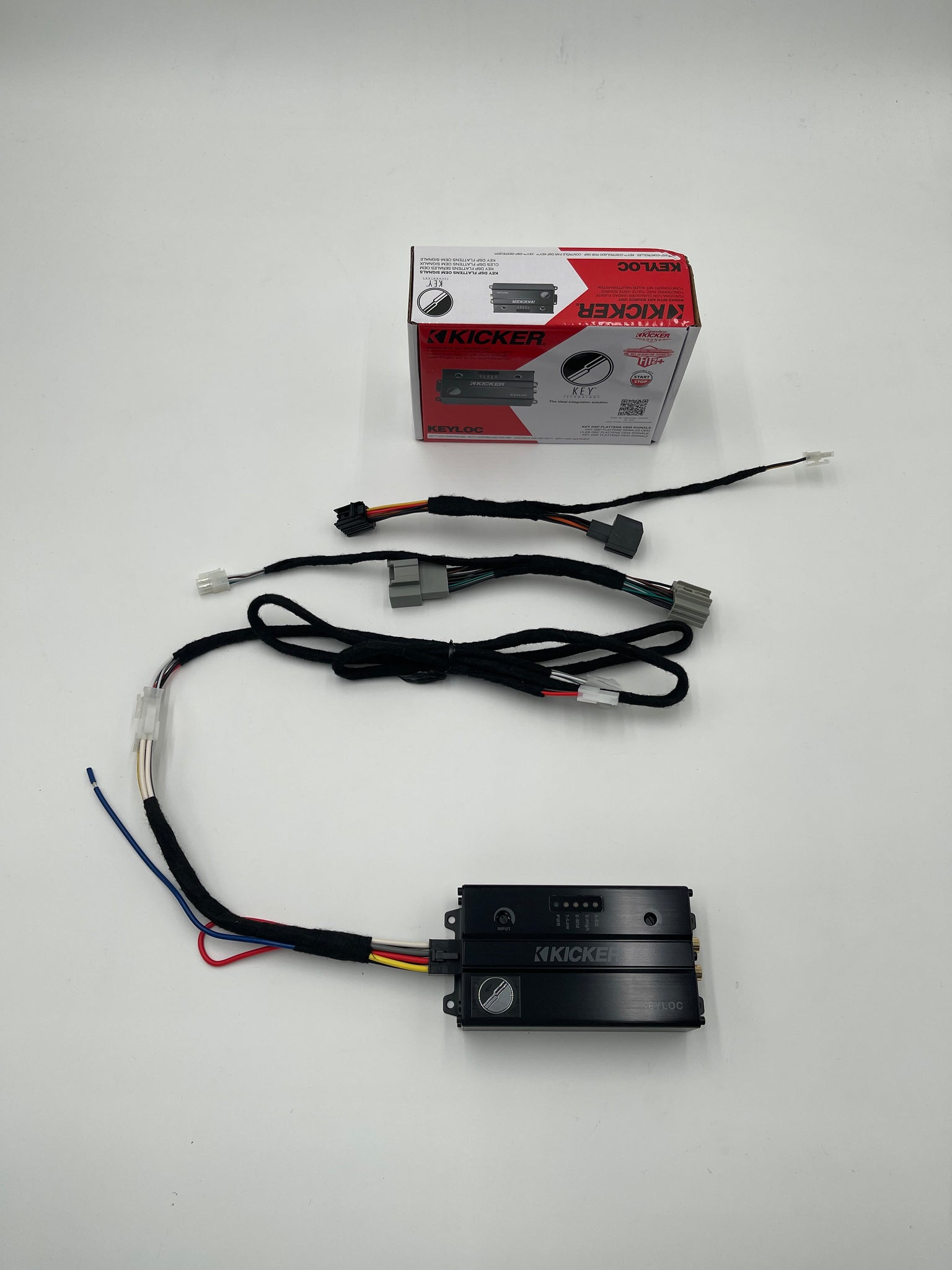

KIT 7 KICKER KEY 500.1 WITH HARNESS $340
KIT 8 KICKER CXA800.1T WITH HARNESS $330
KIT 9 KICKER CXA1200.1T WITH HARNESS $440
KIT 10 LC2IPRO HARNESS ONLY $100
KITS 11 - 13 FOR ADDING TWO CHANNEL AMP TO POWER REAR DOOR SPEAKERS
KIT 11 B & O REAR SPEAKER AMP HARNESS ONLY $100
KIT 12 MUSWAY TWO.100 TO POWER REAR DOOR SPEAKERS $440
110 WATTS RMS X 2
2018 -2024 F150
2020 - 2024 SUPERDUTY
KIT 13 MUSWAY TWO.100 TO POWER 6 1/2 KICKER KS SPEAKERS IN REAR DOORS WITH SPEAKER RINGS & PLUGS $ 620
110 WATTS RMS X 2
2018 -2024 F150
2020 - 2024 SUPERDUTY
KITS 14 - 15 FOUR CHANNEL AMP TO POWER REAR SPEAKERS AND NEW SUB WOOFER
KIT 14 MUSWAY 4 CHANNEL AMP TO RUN 6 1/2 KICKER KS REAR SPEAKERS AND KICKER 8 INCH DUAL 2 OHM SUB IN FACTORY B & O ENCLOSURE . $1000
120 WATTS RMS X 2 FOR REAR SPEAKERS
360 WATTS RMS BRIDGED FOR SUB
2018 -2024 F150
2020 - 2023 SUPERDUTY 10 SPEAKER SYSTEM
KIT 15 MUSWAY 4 CHANNEL AMP TO RUN REAR SPEAKERS AND SUB $720
120 WATTS RMS X 2 @ 4 OHMS FOR REAR SPEAKERS
360 WATTS RMS @ 4 OHMS BRIDGED FOR SUB
2018 -2024 F150
2020 - 2023 SUPERDUTY
KIT 16 MUSWAY FIVE100 5 CHANNEL AMP TO RUN MAIN DOOR SPEAKERS PLUS SUB WOOFER $850
FIVE.100+ Product Overview
- Start-Stop ready
- EPS (Intelligent High Level Input Error Protection System)
- Utilizes 4-fold laminated circuit boards that allows for small size and effectively suppresses EMI (RF) interference which is a must for full range Class D Amplifiers. Passes the difficult EMI European standards.
- High- and Low-Level Inputs
- RCA (Low Level) output.
- Brushed aluminum heat sink and end panels
- Auto Turn On via DC Offset or Signal Sensing
- Remote level controller is included in the box
KIT 17 KICKER LX1300.7 SEVEN CH AMP & HARNESS $1050
Specifications
| LX 1300.7 white paper |
| 51LX13007 Whitepaper PDF |
| RMS Power [Watts/Channel] @ 14.4V |
|
Amp 1 & Amp 2 (Stereo Channels): 2Ω Stereo: 150 x 4 4Ω Stereo: 125 x 4 4Ω Bridged: 250 x 2 Amp 3 (Stereo Pair): 2Ω Stereo: 65 x 2 4Ω Stereo: 65 x 2 4Ω Bridged: 130 x 1 Sub Channel: 1Ω mono: 700W 2Ω mono: 550W 4Ω mono: 300W |
| Dynamic Power [Watts] |
| 1500 |
| Frequency Response [Hz] |
| Stereo Channels: 20–20k Sub Channel: 10–160 (+0/-1dB) |
| Signal-to-Noise Ratio (a-weighted, re: rated power) |
| >95dB |
| Signal-to-Noise Ratio (ref: 1W output) |
| >75dB |
| Dimensions [in, cm] |
| Height: 2-3/8 (6 cm) Width: 8-7/16 (21.4 cm) Length: 12-5/8 (32 cm) |
| Input Sensitivity |
| High level 1V–40V Low level 125mV–5V |
| Variable Electronic Crossover |
|
Amp 1 & Amp 2, Amp 3 (Stereo Channels): Off/HP/LP/BP HP: 20–5kHz LP: 40–5kHz Sub Channel: LP 40–160Hz, 24dB/octave Linkwitz-Riley Selectable Topology: 12, 18, or 24dB/oct Butterworth; 12 or 24dB/oct Linkwitz-Riley |
| Variable Subsonic Filter |
| 24dB/octave Linkwitz-Riley, variable hi-pass @ 10–80Hz (sub channel only) |
| KickEQ+™ (Sub Channel) |
| 0–6dB, variable center 20–80Hz, variable bandwidth 1–5 |
| Warranty |
|
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase.
|
KIT 19 MUSWAY EIGHT100 8 CH AMP WITH PLUG & PLAY HARNESS $1000
Product Specifications:
- OUTPUT POWER RMS @ 13.8v:
- 8 x 100w @ 4 Ohms
- 8 x 180w @ 2 Ohms
- 4 x 360w @ 4 Ohms bridged
- OUTPUT POWER RMS @ 14.4v:
- 8 x 110w @ 4 Ohms
- 8 x 195w @ 2 Ohms
- 4 x 390w @ 4 Ohms bridged
- Frequency Range –3dB: 4 - 38000 Hz
- Highpass Filter 50 - 5000 Hz (CH1/2 & CH5/6)
- Highpass Filter 10 - 500 Hz (CH3/4 & CH7/8)
- Lowpass Filter 50 - 5000 Hz (CH3/4 & CH7/8)
- Bandpass Function (CH3/4 & CH7/8)
- Input Mode CH2/CH4/CH6/CH8
- RCA Inputs
- High Level Inputs with EPS
- Auto Turn On Function
- Bass Remote Controller
- Dimensions: 11.81 x 1.77 x 5.91 inches
Customer Reviews
4.8 Based on 17 Reviews
Write a Review Filter Reviews:
JC
01/13/2025
Jonathan C.
United States2024 F150 with 14 Speaker B&O
I purchased the Plug N Play 5-Channel full system Musway Kit for my 2024 F150 Lariat. The wire harness is well designed with plenty of cable to install the Musway amp under seat or behind the rear seat. I swapped out the front and rear door OEM speakers for 6.5 Musway speakers. I also added a behind the rear seat ported sub enclosure with 2 6.5 SoundQubed drivers. The B&O amp drives the tweeters and dash speakers, which are still clear and sound great despite the upgraded door speakers with the extra power. The cool thing about this setup is I did not have to go in the dash and the ACM to hook up a T-Harness. The Plug N Play T-harness connects at the B&O amp and grabs the front and rear speaker output, and sub output, and sends to the Musway amp. Nice! I mounted the Musway amp on an amp plate designed to install behind the passenger seat, while keeping the B&O amp in its original location. I highly recommend this option for a quick and clean upgrade of the 14 speaker B&O system.
RE
07/08/2024
Ronald E.
United StatesIdiot proof upgrade!
This Plug & Play Wiring Harness made replacing my sub and installing an amp in my Bronco rediculously easy. First time installing my own amp and truely the hardest part was removing the trim panels.
RP
02/02/2024
Rocky P.
United StatesExactly what I needed
Great quality product, I’ll purchase more in the future as needed for sure. Zero splicing!
GE
02/02/2024
Greg E.
United StatesBronco PNP. Subwoofer
Very easy install
JD
02/02/2024
John D.
United StatesGreat product
Overall good experience with the product. The plug and play harness is of great quality and it works just as it should. LC2i pro works great especially in combination with the kicker 500 amp although I'm still working on the tuning aspect. The only complaint was I have was the level of engagement in assistance when I had experienced an issue with calling for support. Not at fault to them but my subwoofer was defective (kicker 8"), when i called in to ask questions just to make sure a default setting wasn't the reason behind what I was experiencing I didn't get a response like technical assistance was wanted to be given. I would still recommend this product as it is of great quality, and I do on a normal basis when asked an opinion on audio system upgrade components to use (I work at a Ford dealer).
