2021 AND UP BRONCO & BRONCO SPORT WITH B & O PREMIUM SOUND KITS
Regular price
$505.00
THIS LISTING WILL BE SEPARATED IN 3 CATEGORIES. ADDING A SUB AND SUB AMP ONLY , ADDING UPGRADED 6 1/2 REAR PODS & ADDING A 2 CHANNEL AMP TO POWER THE REAR PODS OR ADDING A FULL SYSTEM .
THE B & O AMP DOES NOT RUN ALL THE SPEAKERS . IN A BRONCO THE REAR SPEAKERS ARE RAN OFF THE ACM (FACTORY RADIO/ AUDIO RECEIVER ) .
OUTPUT IS VERY LOW 15-20 WATTS . SO UPGRADING TO 6 1/2 AND POWERING THEM WITH A MUSWAY 2 CHANNEL AMP DELIVERING A 115 WATTS RMS EACH WILL MAKE A HUGE DIFFERENCE

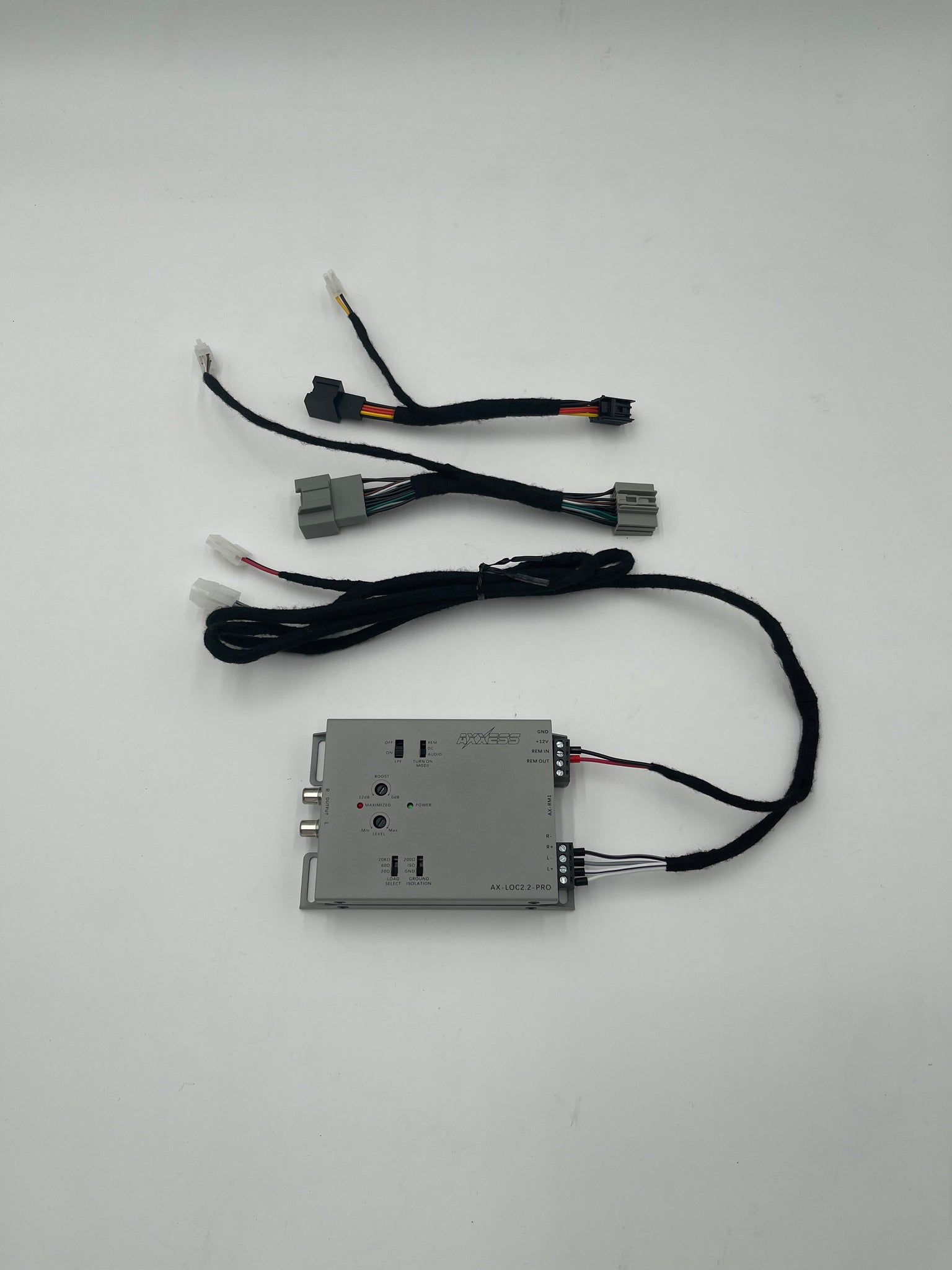

WITH THE B & O SYSTEM ADDING A SUB ONLY THE B &O AMP STAYS FUNCTIONAL IN THE VEHICLE AND A T HARNESS WITH A LC2IIPRO OR COMPATIBLE AMP THAT ACCEPTS THE B & O INPUT TO PROVIDE SIGNAL TO THE SUB .
WHEN UPGRADING THE FULL SYSTEM A INTERFACE IS NOW NEEDED AS THE B & O AMP IS COMPLETELY REMOVE FROM THE VEHICLE . THE INTERFACE PLUGS INTO WHERE THE FACTORY B & 0 AMP WAS AND WILL PROVIDE YOU WITH YOUR FRONT REAR AND SUB OUTPUTS TO CONNECT TO YOUR AFTERMARKET AMPS WHILE RETAINING ALL THE VEHICLE FACTORY RADIO FUNCTIONS WORKING AS NORMAL.
THE B & O AMP DOES NOT RUN ALL 6 SPEAKERS IN A BRONCO . THE REAR SPEAKERS AND CENTER CHANNEL RUN OFF OF THE FACTORY RADIO POWER . WHEN THE B & O AMP IS REMOVED THESE SPEAKERS WILL NO LONGER WORK OFF OF THE RADIO AND A 6 CHANNEL AMP IS REQUIRED TO RE POWER ALL 6 SPEAKERS . WHEN BYPASSING A FACTORY AMP THE CENTER CHANNEL SPEAKER IS NEVER AMPLIFIED AND NO LONGER USED .
THE INTERFACE WILL COME WITH 2 INCLUDED HARNESS . 1 IS FOR THE AUDIO CONTROL MODULE (ACM ) BEHIND YOUR HEATING CONTROLS TO GIVE YOU THE REAR SPEAKER POD WIRES TO RECONNECT THE REAR SPEAKERS TO THE AMP . AND THE OTHER HARNESS PLUGS IN AT THE B & O PLUG THAT GIVES YOU ALL OF THE OTHER SPEAKER WIRES
HARNESS PLUGS IN AT MIDDLE PLUG OF THE B & O AMP
TAXES ARE INCLUDED ON ALL KITS EXCEPT FOR CT RESIDENTS
ADDING A SUB ONLY KITS
KIT 1 MUSWAY TWO.100 370 WATT RMS AMP @ 4 OHMS BRIDGED WITH KICKER COMP 8 INCH SUB & HARNESS DUAL 2 OHMS $505
KIT 2 KICKER KEY 500.1 WITH KICKER COMP 8 INCH DUAL 4 OHM SUB 300 WATTS RMS $430
KIT 3 MUSWAY TWO.100
370 WATT RMS AMP @ 4 OHMS BRIDGED WITH HARNESS. $375
KIT 5 LC2IPRO WITH HARNESS $$230
KIT 6 ACM 1.300 AMP WITH HARNESS $375
KIT 7 LC-1.800 AMP WITH HARNESS $530
KIT 8 LC-1.1500 AMP WITH HARNESS
KIT 9 KICKER CXA400.1T WITH HARNESS $285
KIT 10 KICKER KEY 500.1 WITH HARNESS $325

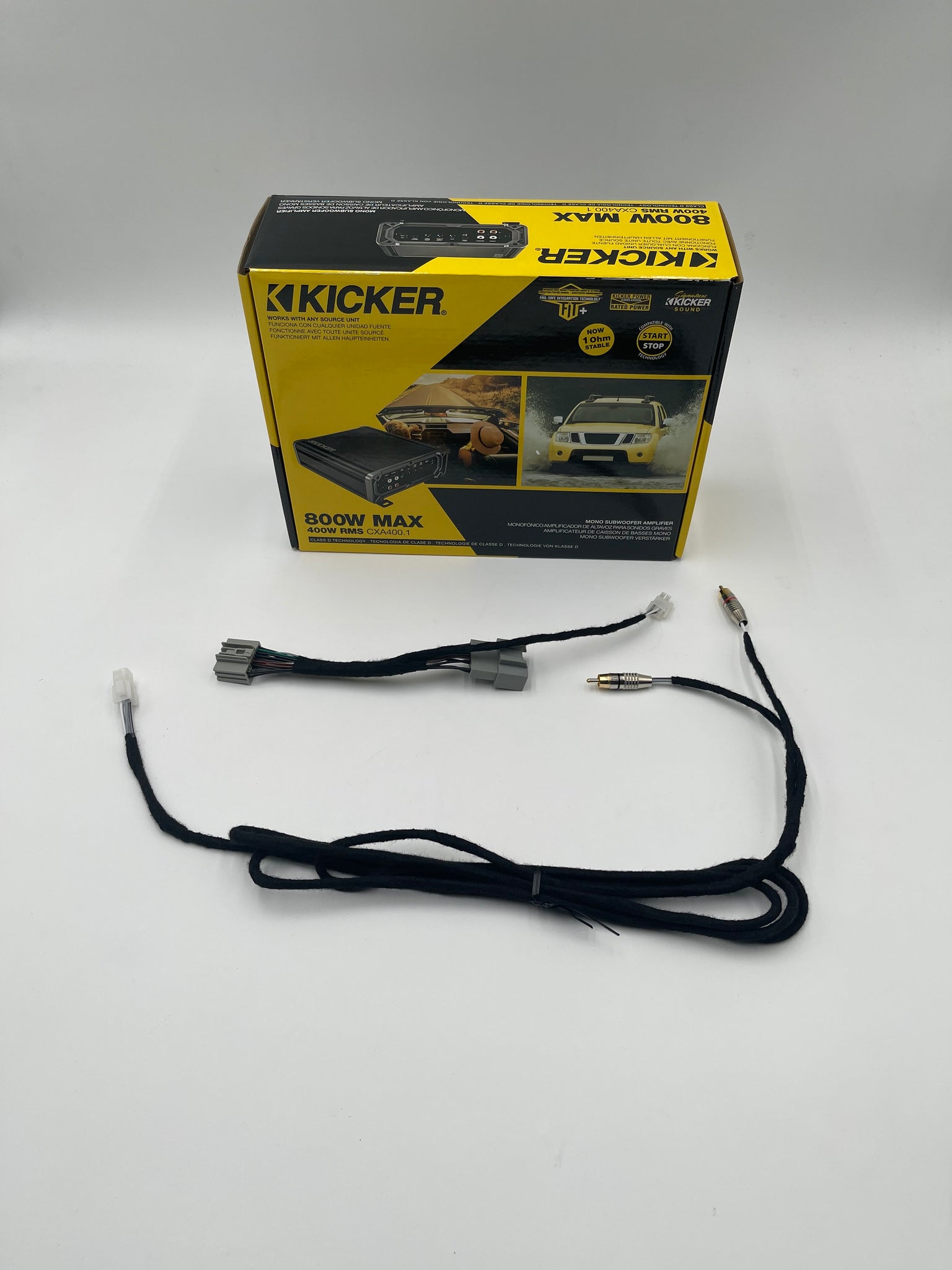

KIT 11 KICKER CXA800.1T WITH HARNESS $330
KIT 12 KICKER CXA1200.1T WITH HARNESS $440
KIT 13 HIGH LEVEL SUB INPUT ONLY HARNESS ONLY $80
KIT 14 MUSWAY ONE.600 CLASS D MONOBLOCK WITH B & 0 HARNESS & BASS KNOB $450
Product Specifications:
- 1 x 250 Watts RMS @ 4 Ohms
- 1 x 400 Watts RMS @ 2 Ohms
- 1 x 650 Watts RMS @ 1 Ohm
- Subsonic Filter 10 - 40 Hz
- Lowpass Filter 40 - 150 Hz
- Bass Boost 0 - 18 dB
- Phase Shift 0 - 180°
- RCA Inputs, RCA Outputs
- High-Level Inputs with EPSAuto Turn On Function
- Filter Bypass Function (Pure Amplification)
- Quick Connect Speaker Output
- Bass Remote Controller
- Dimensions: 150 x 45 x 240 mm
KIT 15 MUSWAY ONE.1000 CLASS D MONOBLOCK WITH B & O HARNESS. $610
ONE.1000 Product Overview
- Start-Stop ready
- EPS (Intelligent High-Level Input-Error Protection System)
- Utilizes 4-fold laminated circuit boards that allows for small size and effectively suppresses EMI (RF) interference which is a must for Class D amplifiers. Passes the difficult European EMI standards.
- High- and Low-Level Inputs
- RCA (Low Level) Output
- Brushed aluminum heat sink and end panels
- Auto Turn On via DC Offset or Signal Sensing
- Remote Bass Level Controller is included in the box
REAR SPEAKER UPGRADE KITS
KIT 16 REAR SPEAKERS METRA 6 1/2 PODS WITH KICKER KS 6 1/2 SPEAKERS & MUSWAY TWO.100 AMP & HARNESS TO POWER REAR SPEAKERS 115 WATTS A CHANNEL RMS @ 4 OHMS. $770
KIT 17 METRA 6.5 SPEAKER PODS WITH SPEAKERS PLUGS & HARDWARE $239
KIT 18 MUSWAY TWO.100 2 CHANNEL AMP 115 WATTS X 2 FOR REAR SPEAKERS PODS WITH PLUG & PLAY HARNESS . $400
REAR SPEAKERS AND SUB UPGRADE
KIT 19 MUSWAY FOUR100 AMP TO POWER REAR PODS AND NEW SUB WOOFER WITH PLUG & PLAY HARNESS . $600
Product Specifications:
12O WATTS RMS A CHANNEL FOR REAR SPEAKERS
400 WATTS RMS @ 4 OHMS BRIDGED FOR SUB
KIT 20 MUSWAY FOUR100 AMP WITH 1 PR OF KICKER 6.5 KS SPEAKERS & REAR METRA PODS & KICKER 8 INCH COMP RT DUAL 2 OHM SUB . $1080
FRONT KICK PANEL AND REAR PODS & SUB UPGRADE
KIT 21 MUSWAY FIVE100 5 CHANNEL AMP AND HARNESS $835
125 WATTS RMS X 4 & 250 WATTS @ 4 OHMS OR 425 @ 2 OHMS FOR SUB .
KIT 22 MUSWAY M5 5 CHANNEL DSP AMP & HARNESS $725
50 WATTS X 4 FOR FRONT KICKS AND REAR PODS + 300 WATTS @ 2 OHMS FOR SUB. AMP IS SIZE OF A IPHONE .
KIT 23 MUSWAY FIVE100 AMP & HARNESS TO POWER FRONT KICKS REAR PODS AND SUB . 2 PAIRS OF MUSWAY 6 1/2 SPEAKERS + PLUGS AND BRACKETS & METRA PODS WITH KICKER COMP 8 INCH SUB . $1310
125 WATTS RMS X 4 & 250 WATTS @ 4 OHMS OR 425 @ 2 OHMS FOR SUB
KIT 24 MUSWAY M5 DSP AMP & HARNESS AND 2 SETS OF MUSWAY 6 1/2 SPEAKERS PLUGS & BRACKETS FOR FRONT KICKS REAR PODS AND METRA PODS & 8 INCH KICKER COMP SUB $1235
50 WATTS X 4 FOR FRONT KICKS AND REAR PODS + 300 WATTS @ 2 OHMS FOR SUB. AMP IS SIZE OF A IPHONE .

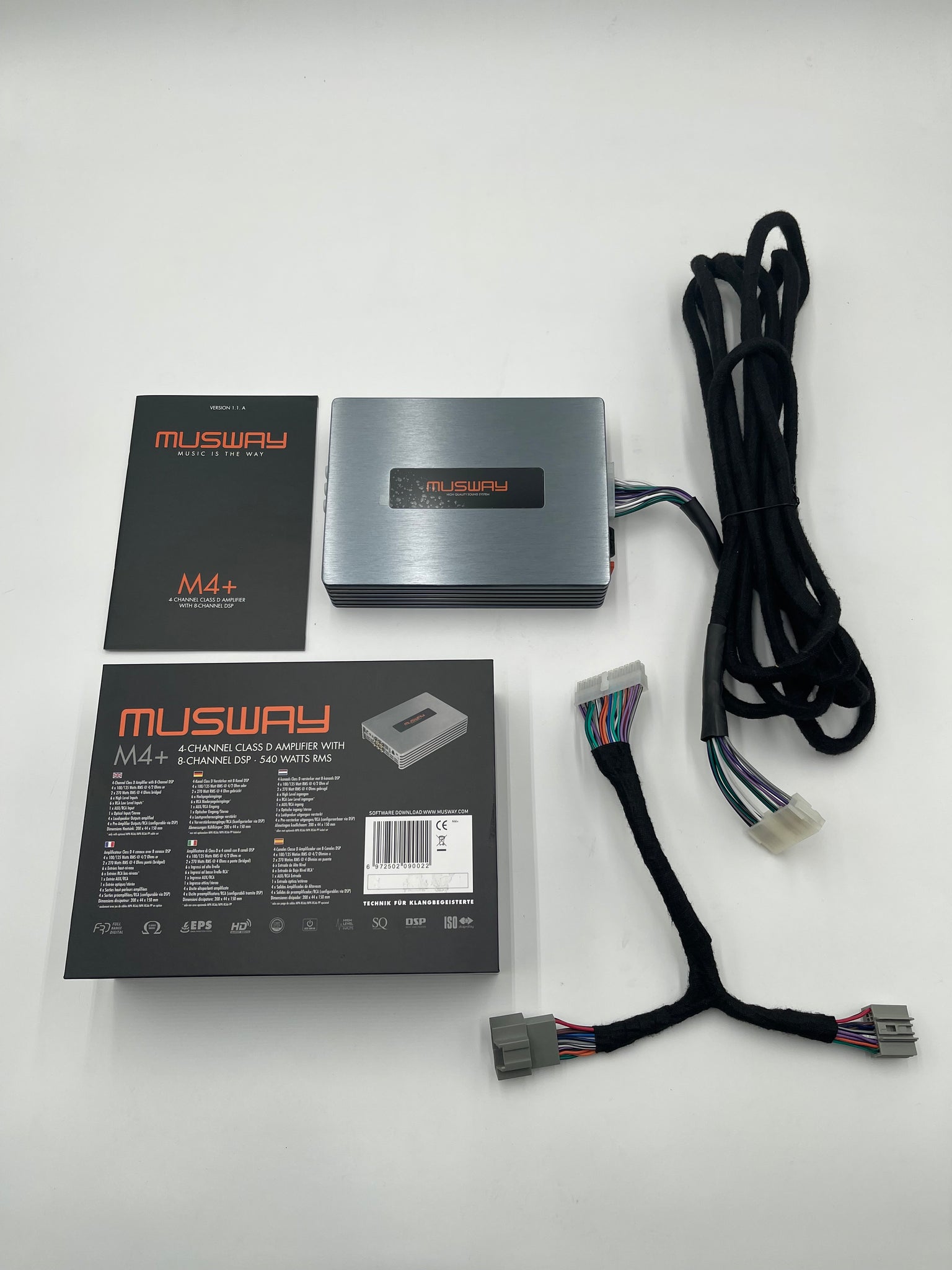

KIT 25 MUSWAY M4+ FOUR CHANNEL DSP AMP WITH 8 CH DSP & HARNESS $800
M4+ Product Overview
- Start-Stop ready
- EPS (Intelligent High-Level Input-Error Protection System)
- Brushed aluminum heat sink and end panels
- Auto Turn On via DC Offset or Signal Sensing
- Utilizes 4-fold laminated circuit boards that allows for small size and effectively suppresses EMI (RF) interference which is a must with full range Class D amplifiers. Passes the difficult European EMI standards
- Clipping LED’s
- With the easy-to-use MUSWAY PC software, the M4+ can be configured perfectly and in real time via PC or the new Musway app for your smartphone or tablet.
- With the 3 optional USB Bluetooth dongles you can stream audio, stream aptX HD Hi Res audio, and can have app control for DSP Tuning from your smartphone or tablet. Also available is the optional DRC1 digital remote control with OLED display that puts the control of your audio system at your fingertips.
KIT 26 MUSWAY M6PRO 6 CHANNEL AMP WITH 1O CH DSP $949
M6Pro Product Overview
- Start-Stop ready
- EPS (Intelligent High-Level Input-Error Protection System)
- Brushed aluminum heat sink and end panels
- Auto Turn On via DC Offset or Signal Sensing
- Utilizes 4-fold laminated circuit boards that allows for small size and effectively suppresses EMI (RF) interference which is a must with full range Class D amplifiers. Passes the difficult European EMI standards
- Output Clipping LED
- With the easy-to-use MUSWAY PC software, the M6 can be configured perfectly and in real time via PC or the new Musway app for your smartphone or tablet.
- With the 3 optional USB Bluetooth dongles you can stream audio, stream aptX HD Hi Res audio, and can have app control for DSP Tuning from your smartphone or tablet. Also available is the optional DRC1 digital remote control with OLED display that puts the control of your audio system at your fingertips.
ADDING A FULL SYSTEM INTERFACE ONLY
Amplifier Integration Interface AmpPRO for Ford B&O A2B Factory Amplified Systems
KIT 27 AMP PRO FD31 $425
AmpPRO can provide a pure digital audio output for use with amplifiers or audio processors equipped with a TOSLINK input.
NOTE: The factory amplifier must be unplugged or removed when installing AP4-FD31. The included harness provides connections for adding an aftermarket amplifier to the factory-installed speakers.
Features
• Simplifies amplifier installation in data-bus controlled factory sound systems
https://catalog.pac-audio.com/index.php?controller=attachment&id_attachment=2090
- Vehicle must be equipped with factory B&O system to be compatible
KIT 28 FD31 & MUSWAY 8 CHANNEL AMP TO RUN ALL 6 SPEAKERS PLUS 8 INCH KICKER COMP DUAL 2 OHM SUB IN FACTORY SUB BOX ,
100 WATTS RMS X 6 PLUS 360 WATTS BRIDGED ON CH 7-8 FOR SUB 1575
KIT 29 FD31 INTERFACE PLUS MUSWAY SIX.100 6 CH AMP 110 WATTS RMS X 6 .
& TWO.100 AMP 370 WATTS @ 4 BRIDGED. 8 INCH KICKER COMP DUAL 4 OHM SUB $1645
